FastGene® Gradient PCR Cycler
Compact 96-well gradient PCR cycler for reliable routine PCR, optimization, and assay development
- 96-well block for high sample throughput
- Compatible with standard 0.2 mL PCR tubes, strips, and PCR plates
- Very fast ramp rates of up to 5°C/s
- Large 7-inch display with simple and intuitive software
- Precise temperature control for reproducible results
- Integrated gradient of up to 42°C, ideal for PCR optimization
Product detail

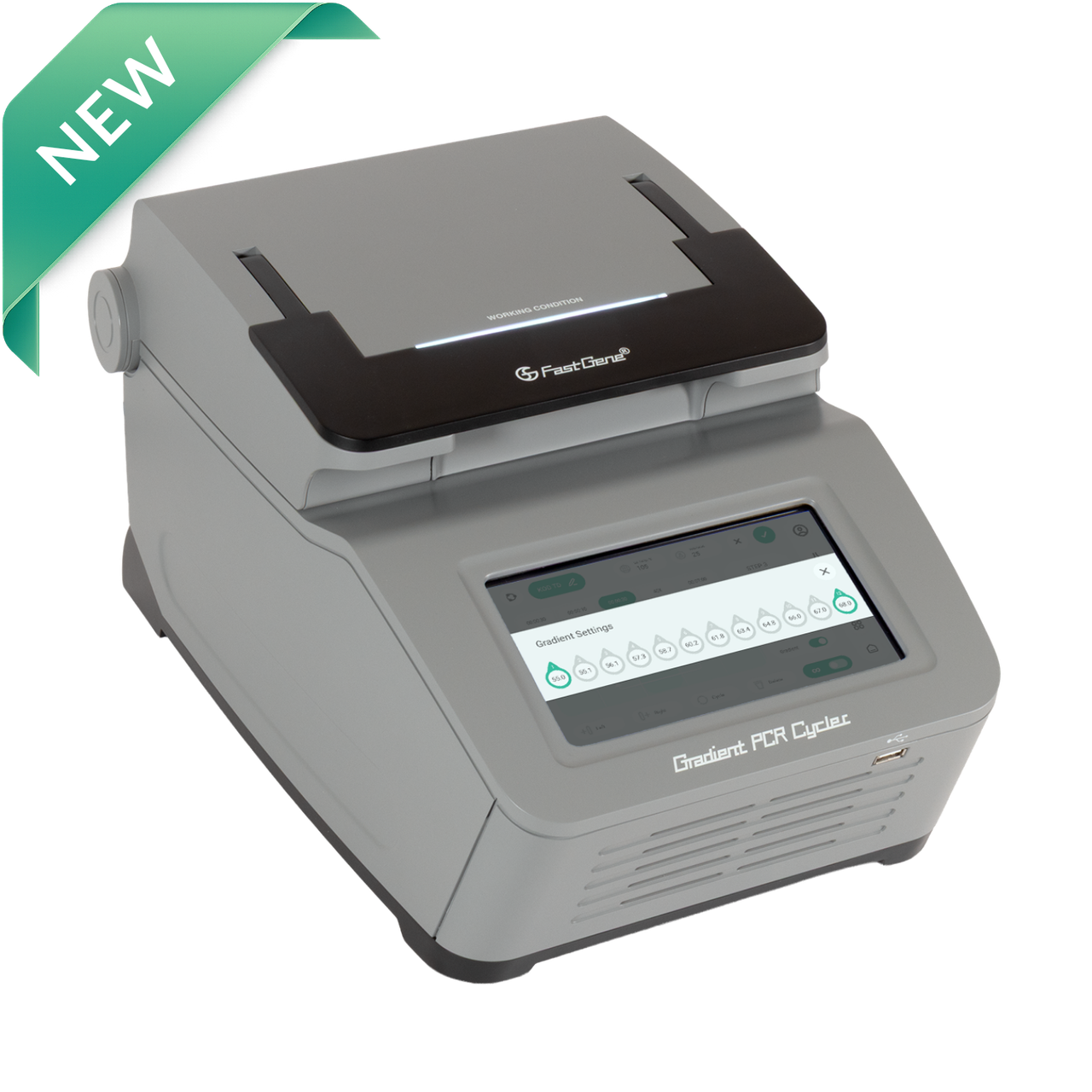

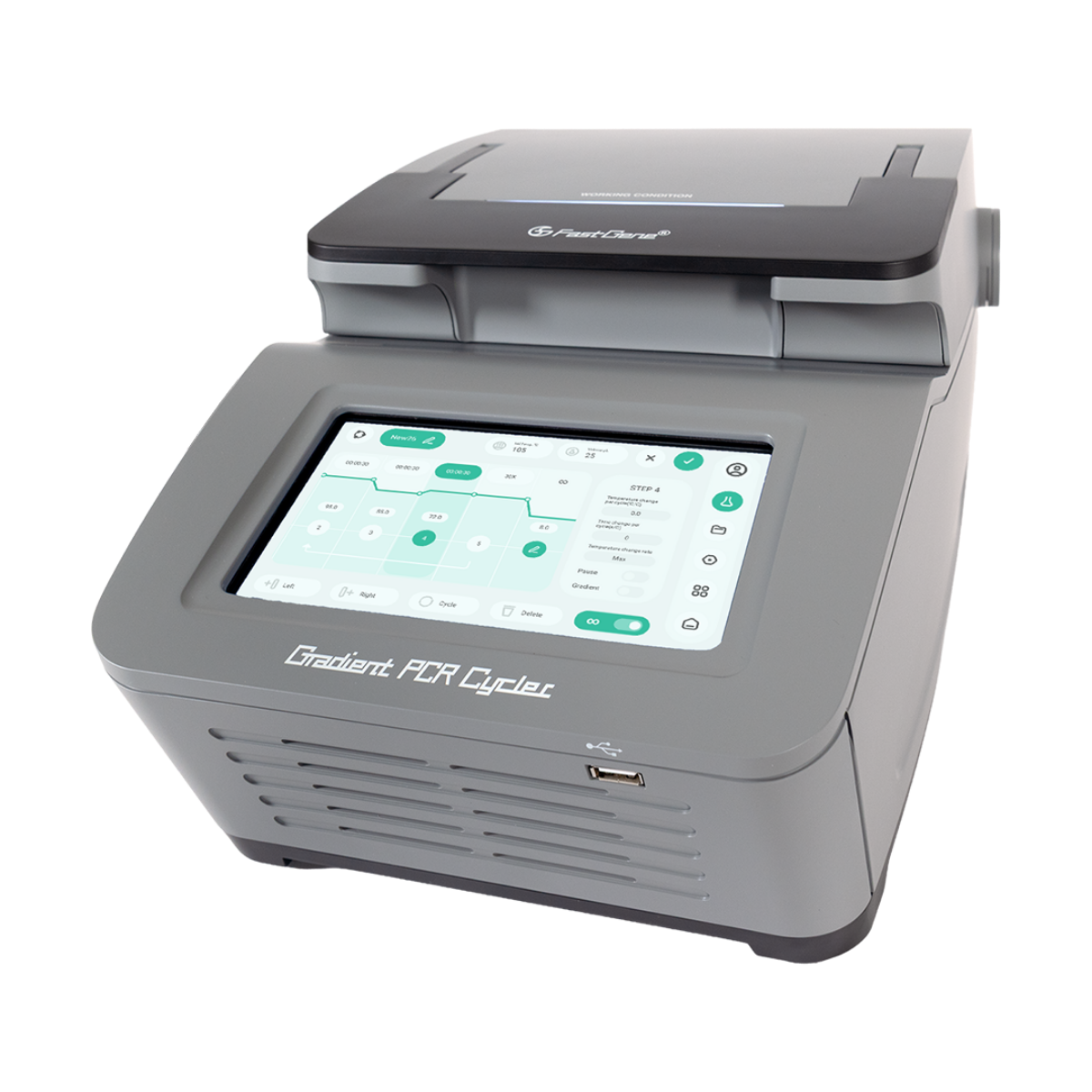

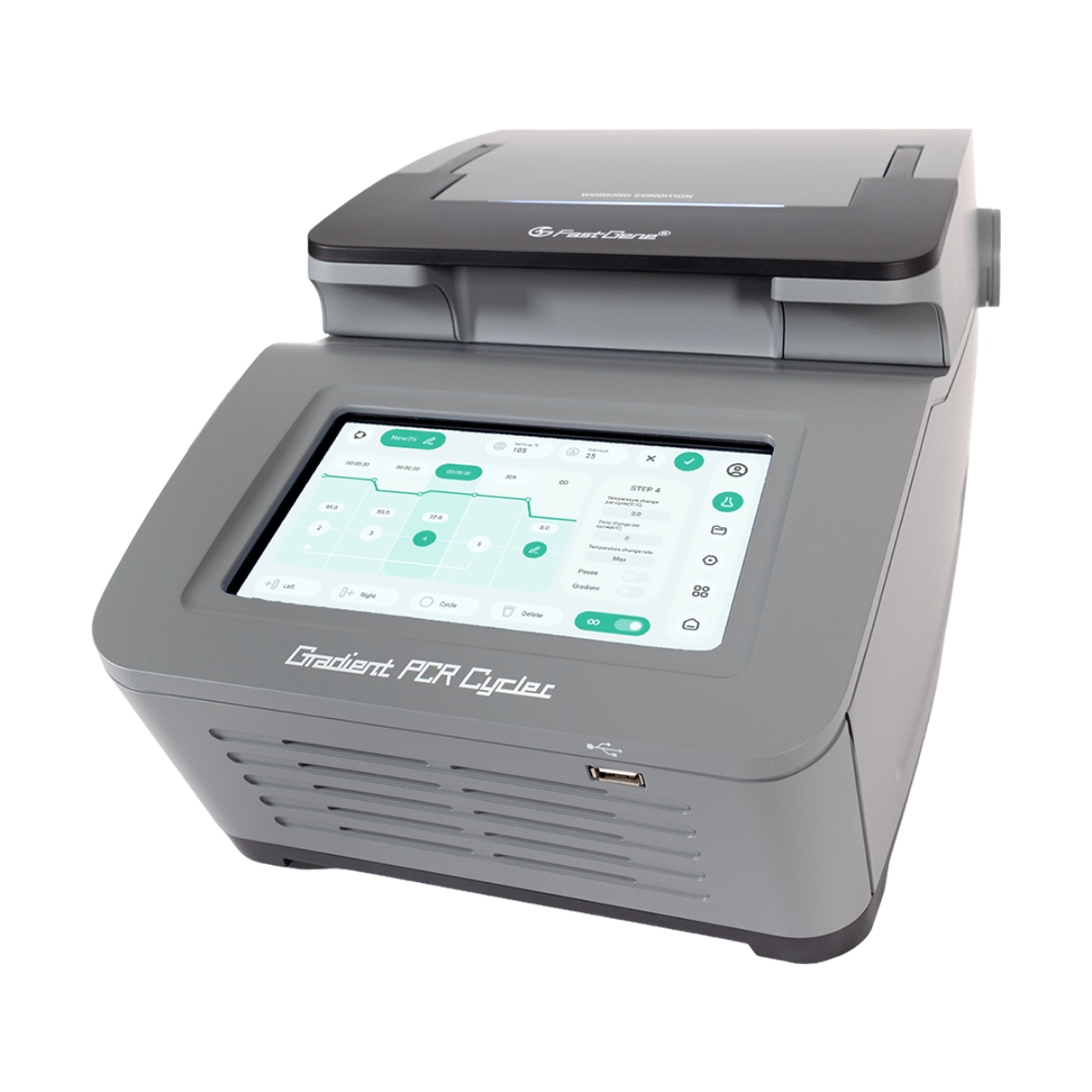

FastGene® Gradient PCR Cycler
96-Well Gradient PCR Thermal Cycler
The FastGene® Gradient PCR Cycler (FG-TC03) is a thermal cycler designed for endpoint PCR applications in molecular biology laboratories. Featuring an integrated temperature gradient function, the system allows users to evaluate multiple annealing temperatures in a single run, helping optimize PCR conditions.
Key Features

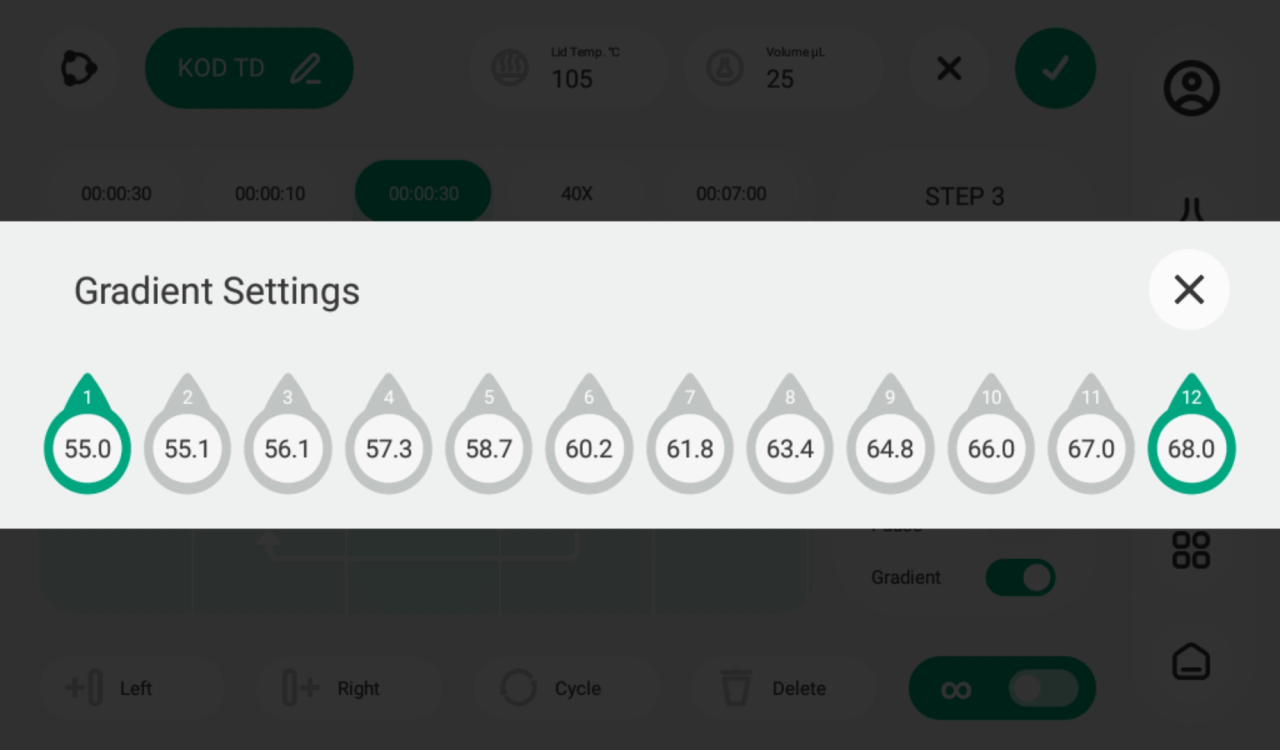

1. Flexible Temperature Gradient Function
- Gradient temperature range: 30–99°C.
- Maximum temperature gradient spread: 42°C.
- Enables the evaluation and selection of suitable primer annealing temperatures for individual PCR reactions.

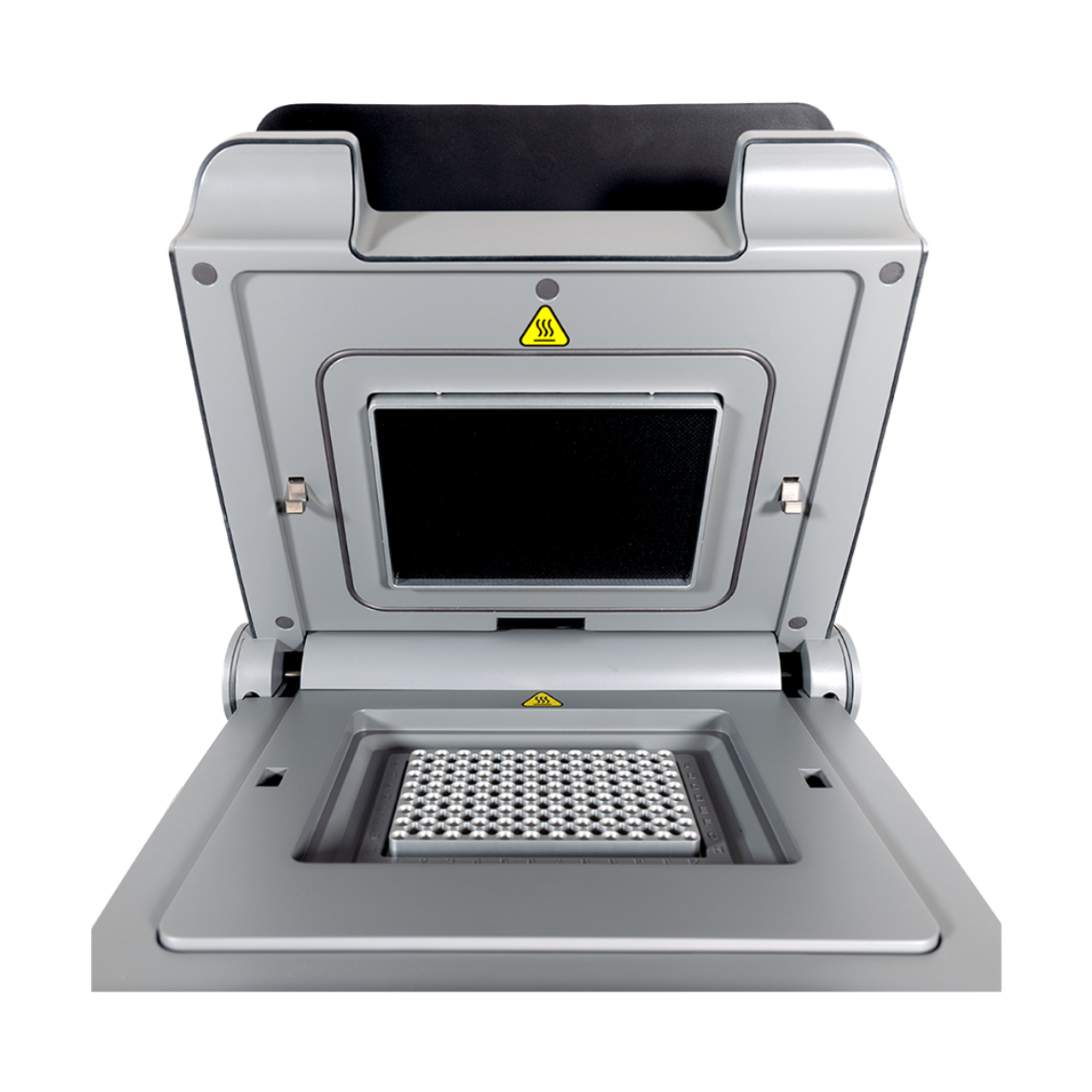

2. 96-Well Thermal Block with Precise Temperature Control
- Block format: 96 wells.
- Reaction volume: 5–100 µL.
- Temperature accuracy: ±0.1°C.
- Temperature uniformity: ±0.3°C at 55°C.
3. Fast Heating Performance
- Maximum heating rate: 5°C/s.
- Average heating rate: ≥2°C/s.
These specifications support efficient thermal cycling for routine laboratory workflows.

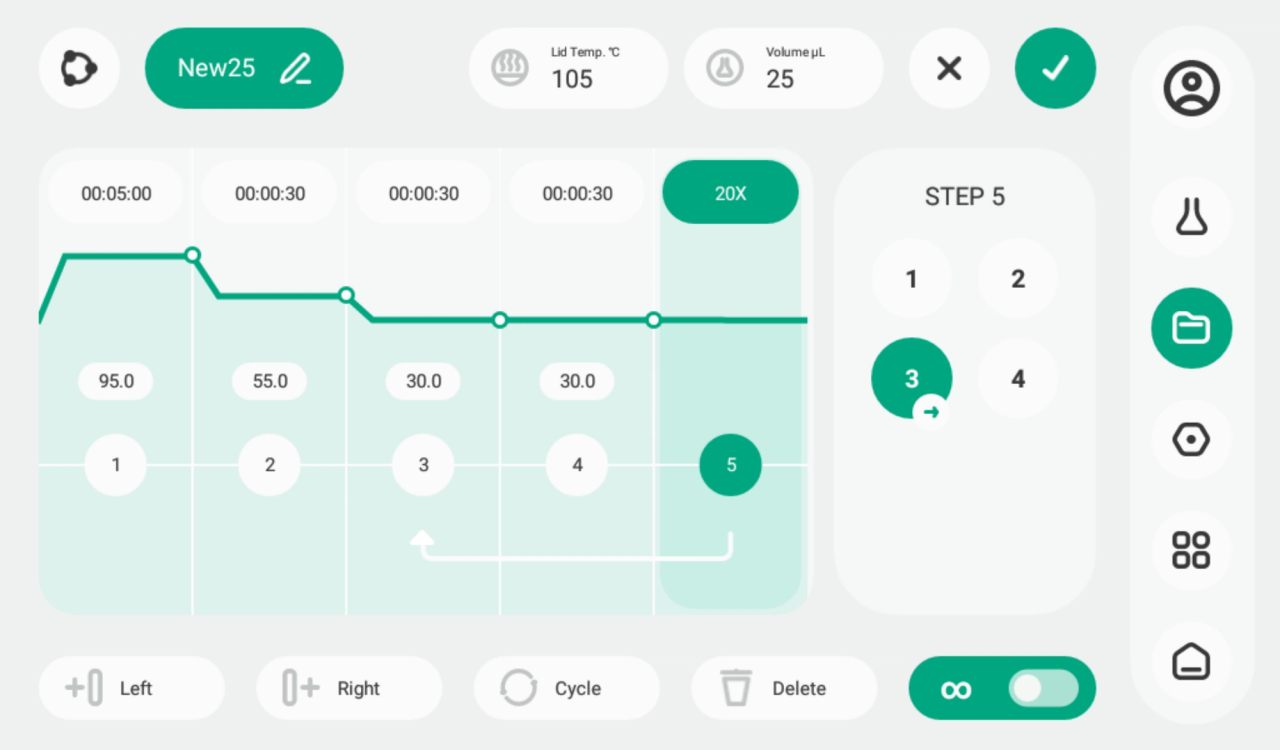

4. Intuitive Interface and Convenient Program Management
- 7-inch touchscreen.
- Storage capacity for up to 5,000 programs.
- Supports up to 50 users.
- USB data import and export.
5. Compatibility with Standard PCR Consumables
The system supports compatible 0.2 mL PCR tubes, PCR tube strips, and 96-well PCR plates, providing flexibility in sample preparation for routine PCR workflows.
Product Information
- Product name: FastGene® Gradient PCR Cycler
- Product code: FG-TC03
- Dimensions: 288 × 427 × 227 mm
- Weight: 9.7 kg
- Intended use: For Research Use Only (RUO).
