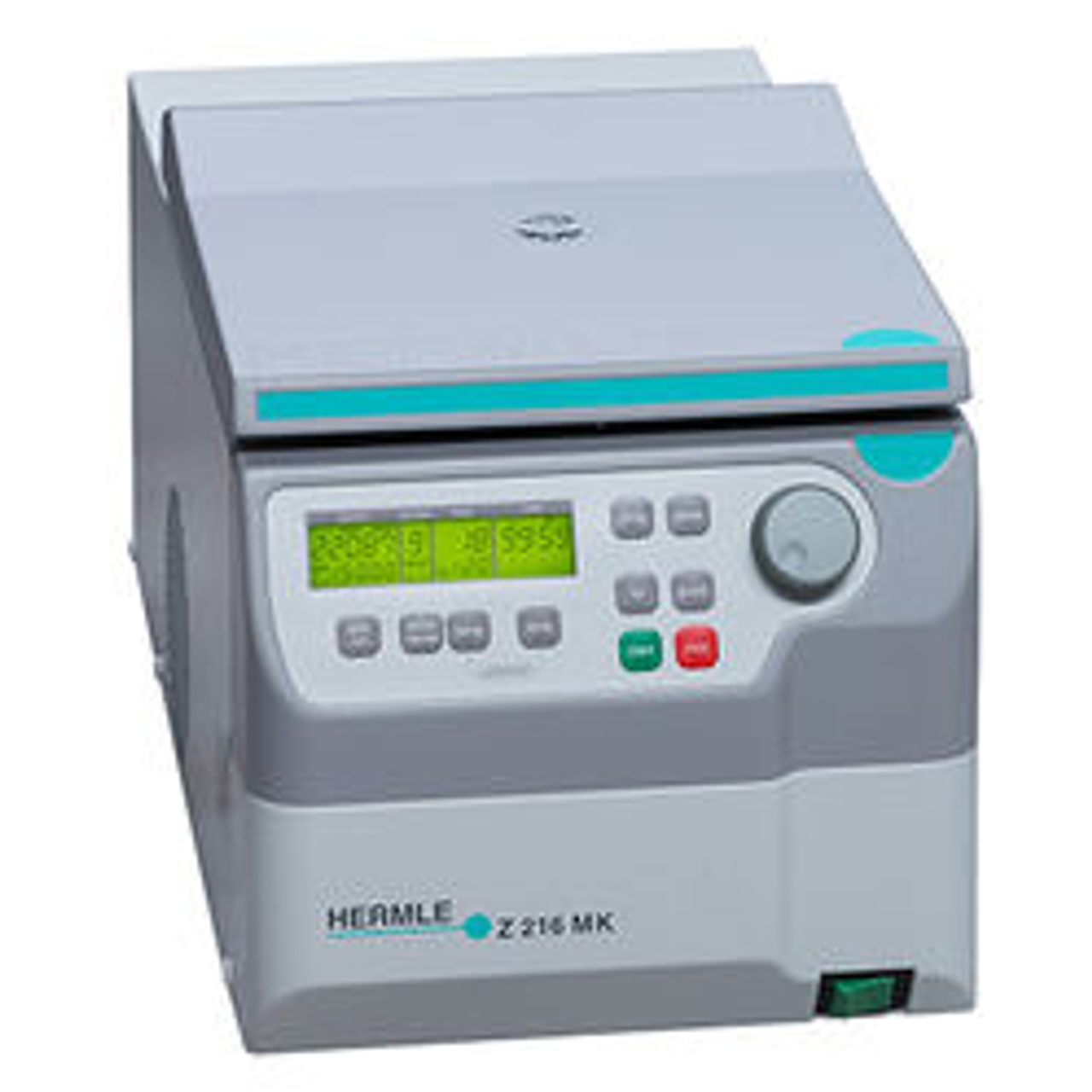

REFRIGERATED CENTRIFUGE HERMLE, Z 216 MK

Equipment Details:

Features:

– Instrument compliant with the IVD standard

– Microprocessor controller with large LCD display

– Motorised lid lock

– Automatic imbalance detection and automatic shut-off

– CFC-free refrigeration system

– Fast acceleration and deceleration time

– Lowest sample temperature 40C at centrifugal force 20000 xg

– Noise level : < 60 dBA at centrifugal force 21379 xg

– Manufactured according to international safety regulations ICE 61010

Control panel:

– Membrane keypad

– Indication of set value and actual value

– Select speed by rpm or by g-force, setting step 10

– Quick centrifugation key “Quick” for short times

– 10 acceleration and deceleration levels

– Can store 99 run programmes including rotor

– Temperature range : -20 to 400C

– Temperature mode selection: 0C or 0F

– Pre-cooling programme (cooling time from room temperature to 40C < 10 minutes)

– Time setting from 10 seconds to 99 hours 59 minutes or continuous

Technical specifications:

– Maximum centrifugation speed: 15000 rpm

– Maximum centrifugal force: 21379 xg

– Speed range : 200 – 15000 rpm

– Temperature range: -20ºC to 40ºC

– Maximum centrifugation volume: 44 x 1.5/2.0 ml

– Set time : 0 – 59 minutes 50 seconds, 10-second setting ; 99 hours 59 minutes, 1-minute setting

– Power supply : 230V, 50-60Hz

Optional accessories:

Angle rotor 24 x 1.5/2.0 ml

Code: 220.87 V14

– Maximum centrifugation speed: 15000 rpm

– Centrifugal force: 21379 xg

– Temperature reached at maximum speed: 40C

Angle rotor 44 x 1.5/2.0 ml

Code: 220.88 V08

– Maximum centrifugation speed: 13500 rpm

– Centrifugal force: 17113 / 17317 xg

– Temperature reached at maximum speed: 70C

Angle rotor 64 x 0.5 ml

Code: 220.92 V07

– Maximum centrifugation speed: 13500 rpm

– Centrifugal force: 16298 / 14261 xg

– Temperature reached at maximum speed: 60C

Angle rotor 12 x 5 ml

Code: 221.35 V03

– Maximum centrifugation speed: 14500 rpm

– Centrifugal force: 19978 xg

– Temperature reached at maximum speed: 40C

Angle rotor 4 x 8-PCR strip

Code: 221.38 V03

– Maximum centrifugation speed: 15000 rpm

– Centrifugal force: 15343 xg

– Temperature reached at maximum speed: 2.50C
