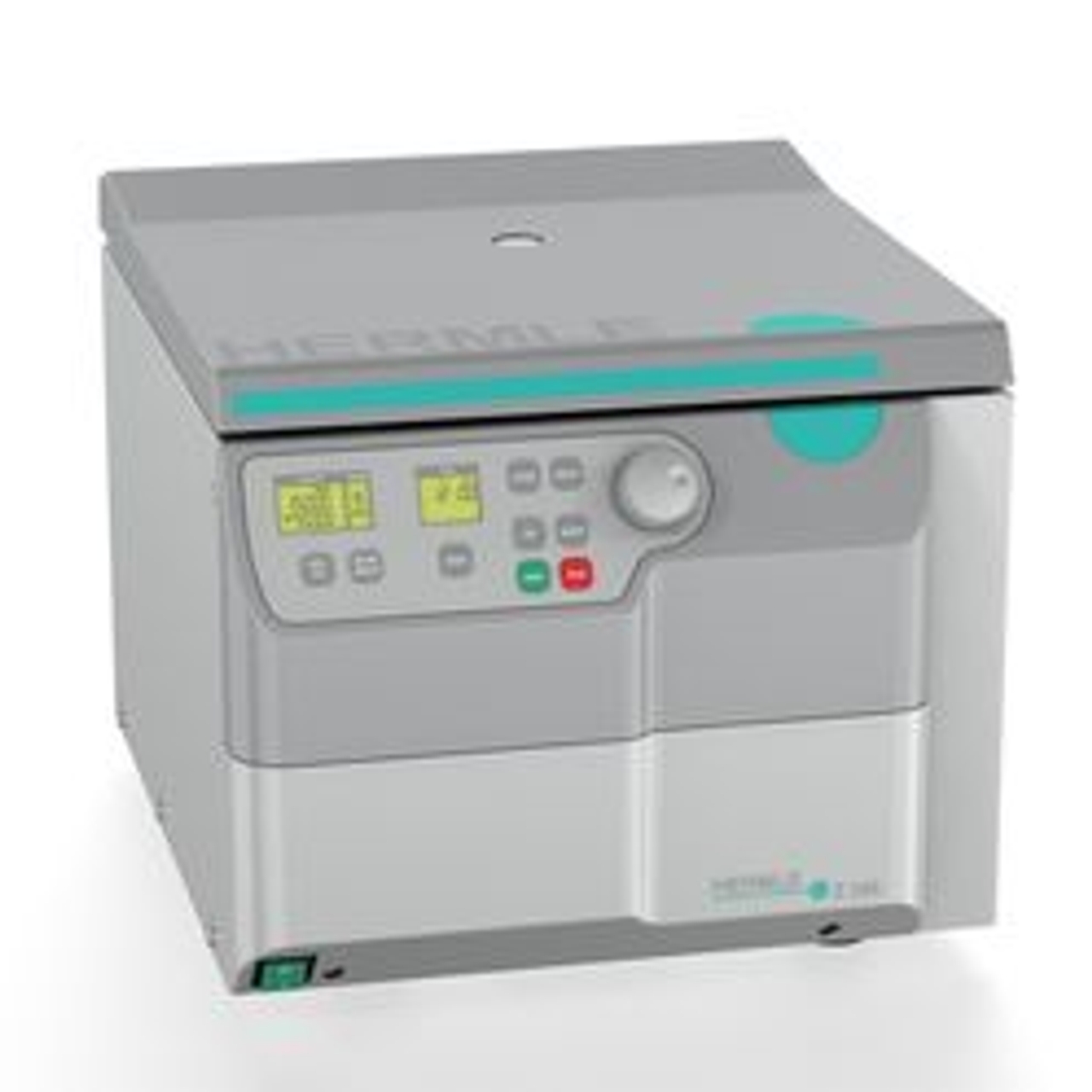

MULTIPURPOSE CENTRIFUGE HERMLE, Z 326

Equipment Details:

Features:

– Instrument suitable for the IVD standard

– Microprocessor controller with large LCD display

– Electric lid lock

– Automatic rotor-recognition system immediately when the rotor is fitted, with overspeed protection

– Imbalance detection and operation stop (each specific rotor)

– Many types of rotors and accessories

– Manufactured according to international safety regulations, IEC 61010

– Acoustic signal at the end of each run, optional choice of several melodies

– Easy rotor removal without auxiliary tools

– Noise level < 60 dBA at maximum speed

Control panel:

– Simple one-handed operation

– Easy to set the programme while wearing gloves

– Splash-proof keypad

– Simultaneous indication of set value and actual value

– Selection of both speed and centrifugal force, setting step 10

– 10 acceleration and deceleration speeds, deceleration without braking possible

– Operating time selection, from 10 seconds to 99 hours 59 minutes or continuous

– Storage of up to 99 run programs

– Quick centrifugation button for short run procedures

Technical specifications:

– Maximum centrifugation speed: 18000 rpm

– Maximum centrifugal force: 23542 xg

– Maximum centrifugation volume: 4 x 100 ml

– Speed range: 200 – 18000 rpm

– Set time: 0 – 59 minutes 50 seconds, 10-second increments; 99 hours 59 minutes, 1-minute increments

– Power supply: 230 V, 50 – 60 Hz

Optional accessories:

Swing-out rotor 4 x 145 ml, code: 221.12 V20

– Maximum centrifugation speed: 4500 rpm

– Centrifugal force: 3350 xg

Adapter for Nalgene bottle 145 ml, code: 626.017

Adapter for 100 ml round-bottom glass tubes, code: 626.000

Adapter for 50 ml round-bottom glass tubes, code: 626.008

Adapter for Falcon 50 ml tubes, code: 626.002

Adapter for 15 ml Falcon tubes, 8 tubes/rotor, code: 626.003

Adapter for 1.8 – 7 ml blood centrifuge tubes, 28 tubes/rotor, code: 626.006

Swing-out rotor 4 x 100 ml, code: 220.72 V20

– Maximum centrifugation speed: 5000 rpm

– Centrifugal force: 4080 xg

Bucket cho rotor 220.72 V06, code: 605.000

Adapter for 100 ml round-bottom glass centrifuge tubes, code : 705.000

Adapter for 50 ml round-bottom glass centrifuge tubes, code : 705.001

Adapter for round-bottom centrifuge tubes/Oak Ridge tubes 50 ml, code : 705.010

Adapter for Falcon 50 ml tubes, code: 705.006

Adapter for Falcon 15 ml tubes, code : 705.018

Adapter for 15 ml round-bottom glass centrifuge tubes, 16 tubes/rotor, code: 705.003

Adapter for 6 – 10 ml blood tubes, 16 tubes/rotor, code : 705.016

Swing-out rotor 2 x 3 microplate trays, code: 221.16 V20

– Maximum centrifugation speed: 4500 rpm

– Centrifugal force: 2716 xg

Angle rotor 30 x 15 ml, code: 221.19 V20

– Maximum centrifugation speed: 4500 rpm

– Centrifugal force: 2830/2467 xg

Angle rotor 12 x 15 ml, code: 221.54 V20

– Maximum centrifugation speed: 6000 rpm

– Centrifugal force: 4427 xg

Angle rotor 6 x 50 ml, code: 221.55 V20

– Maximum centrifugation speed: 6000 rpm

– Centrifugal force: 4427 xg

Adapter for Falcon 15 ml tubes, code: 708.030

Angle rotor 6 x 85 ml, code: 220.78 V20

– Maximum centrifugation speed: 11000 rpm

– Centrifugal force: 13932 xg

Adapter for 15 ml tubes, code : 707.001

Adapter for 50 ml tubes, code : 707.003

Adapter for Falcon 50 ml tubes, code : 707.004

Adapter for Falcon 15 ml tubes, code : 707.014

Angle rotor 30 x 1.5/2.0 ml, code: 221.17 V20

– Maximum centrifugation speed: 13000 rpm

– Centrifugal force: 17785 xg

Angle rotor 24 x 1.5/2.0 ml, code: 220.87 V21

– Maximum centrifugation speed: 14000 rpm

– Centrifugal force: 18624 xg

Angle rotor 44 x 1.5/2.0 ml, code: 221.68 V20

– Maximum centrifugation speed: 15000 rpm

– Centrifugal force: 21379 xg
