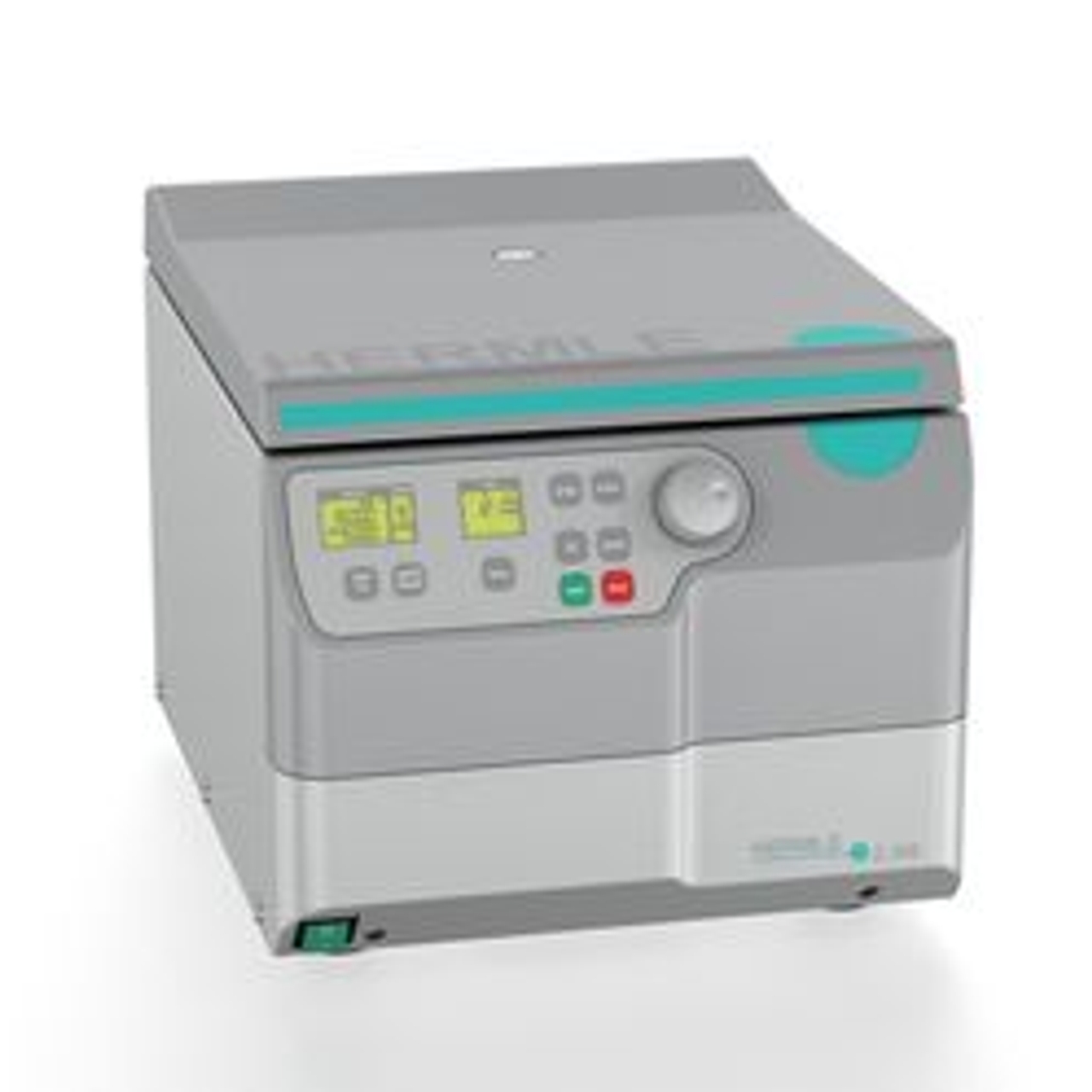

MULTIPURPOSE CENTRIFUGE HERMLE, Z 306

Equipment Details:

Features:

– Instrument compliant with the IVD standard

– Microprocessor controller with large LCD display

– Motorised lid lock

– Automatic rotor-recognition system with overspeed protection when the rotor is fitted.

– Automatic imbalance detection and automatic shut-off

– A large number of rotor types and accessories

– Manufactured according to international safety regulations ICE 61010

– Acoustic signal when centrifugation ends

– Easy to change rotor

– Noise level: < 63 dBA at maximum speed

– Improved parameter system to keep samples cool

– Indication of set value and actual value

– Select speed by rpm or by g-force, setting step 10

– 10 acceleration and deceleration levels, deceleration without braking possible

– Time setting from 10 seconds to 99 hours 59 minutes or continuous

– Can store 99 run programmes including rotor

– Quick centrifugation key “Quick” for short times

Technical specifications:

– Maximum centrifugation speed: 14000 rpm

– Maximum centrifugal force: 18624 xg

– Speed range : 200 – 14000 rpm

– Maximum centrifugation volume: 4 x 145 ml

– Set time : 0 – 59 minutes 50 seconds, 10-second setting ; 99 hours 59 minutes, 1-minute setting

– Power supply : 230V, 50-60Hz

Optional accessories:

Swing-out rotor 4 x 145 ml, code: 221.12 V20

– Maximum centrifugation speed: 4500 rpm

– Centrifugal force: 3350 xg

Swing-out rotor 4 x 100 ml, code: 220.72 V20

– Maximum centrifugation speed: 4000 rpm

– Centrifugal force: 2611 xg

Bucket cho rotor 220.72 V06, code: 605.000

Swing-out rotor 2 x 3 Microtitreplates, code: 221.16 V20

– Maximum centrifugation speed: 4500 rpm

– Centrifugal force: 2716 xg

Swing-out rotor 2 x 3 Microtitreplates, code: 220.50 V20

– Maximum centrifugation speed: 3500 rpm

– Centrifugal force: 1424 xg

Angle rotor 30 x 15 ml, code: 221.19 V20

– Maximum centrifugation speed: 4500 rpm

– Centrifugal force: 2830 xg

Angle rotor 12 x 15 ml, code: 221.54 V20

– Maximum centrifugation speed: 6000 rpm

– Centrifugal force: 4427 xg

Angle rotor 24 x 1.5/2.0 ml, code: 220.87 V21

– Maximum centrifugation speed: 14000 rpm

– Centrifugal force: 18624 xg

Angle rotor 24 x 1.5/2.0 ml, code: 220.87 V20

– Seal

– Maximum centrifugation speed: 14000 rpm

– Centrifugal force: 18624 xg

Angle rotor 6 x 50 ml, code: 221.55 V20

– Maximum centrifugation speed: 6000 rpm

– Centrifugal force: 4427 xg

Angle rotor 30 x 1.5/2.0 ml, code: 221.17 V20

– Maximum centrifugation speed: 12000 rpm

– Centrifugal force: 15131 xg
