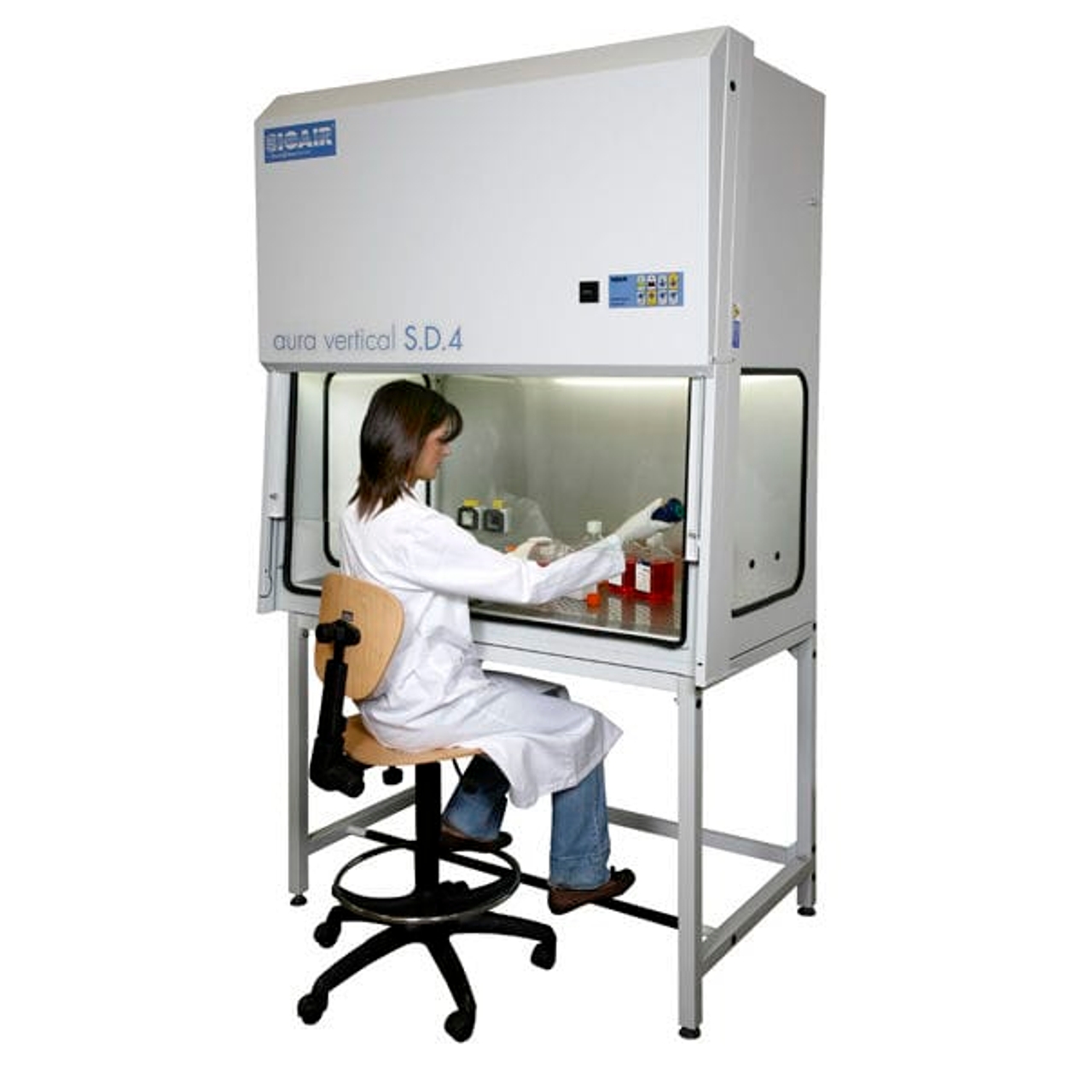

EuroClone laminar-flow cabinet, vertical airflow

General information:

• Aura Vertical S.D.4 is designed to ensure the highest product protection; it is a vertical-airflow laminar-flow cabinet (Class 100) with the most convenient design for the user.
• 70% of the air is recirculated back to the working area through the main HEPA class H14 filter (supplied with a micromesh membrane size that helps distribute the airflow perfectly) while 30% of the air is exhausted outside through the exhaust HEPA filter.
• Both types of HEPA (H14) filters are manufactured according to standard EN1822-1 and EN 13091:1999: achieves a recovery efficiency of 99.995% for particles of size 0.3μm (MPPS).
• Ensures protection of the product as well as protection of the technician against harmful substances… (For example: allergens, powders…).
• The average airflow speed through the HEPA filter is: 0.45 m/s, ensuring the working environment meets Class 100 according to FED STD 209E and ISO5 (ISO 14644-1 Standard).
• CE marking certification.

Outstanding features:

• Warning when the fan fails.
• Soft keys used to control the fluorescent lamp, the UV lamp, the fan, the gas and the power socket inside the cabinet.
• Cabinet exterior made of rolled steel with a paint finish.
• The work surface is removable, making cleaning easy. The inner walls are made of grade 3 stainless steel (Inox 304).
• The cabinet face is designed in an inclined form with a manual sliding door, convenient during operation.
• Unique sliding door with the manufacturer's exclusive lock type.
• Has an hour meter used to monitor working time for the HEPA filter.

Technical specifications:

• Working area dimensions (W x D x H) mm: 1240 x 610 x 650
• External dimensions (W x D x H) mm: 1355 x785 x 1457
• Height including stand: 2290mm
• Maximum opening of the working window: 200mm
• Weight: 175 KG
• Power supply: 230V – 50 Hz
• Required power: 1.700W
• Noise level dB(A): < 62
• Illuminance: > 700 lux
