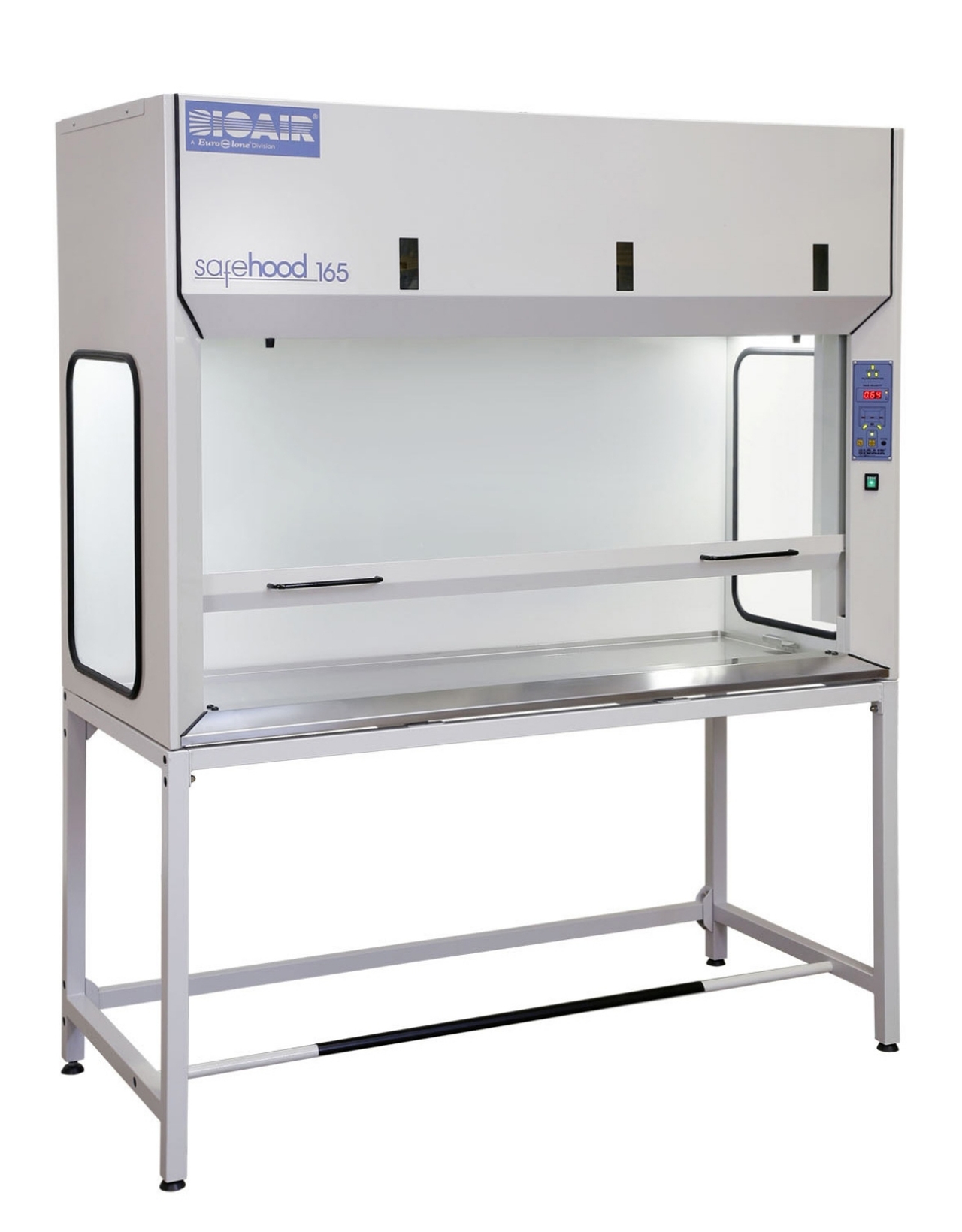

Ductless chemical fume hood Euroclone 1m2

Technical characteristics:

• Manufactured to standards BS7258 and BS7989, meeting the requirements and guidance of COSHH and AFNOR NFX158211, ETRAF type 1 & 2.
• Is a ductless fume hood type, convenient during use and moving.
• High-quality, long-life activated-carbon filters, able to absorb toxic gases to the maximum and effectively. Filter replacement is simple and fast.
• Automatically adjusts the air speed according to the door opening to maintain an average air speed of 0.5 m/s.
• Visual and audible alarm when the working window is in a position that affects the airflow speed. The cabinet door has a sensor integrated at the lowest and highest positions of the working window, warning the user during operation.
• LED system displays the operating status and an audible warning for safe use.
• Does not affect pressure-balance control of the laboratory.
• Has a function reporting filter usage status, helping the customer monitor and replace it easily.
• The filter is easily replaced from the front, above the working window, convenient during servicing and maintenance.
• Tempered-glass door, raised and lowered gently, with a good stop point, aerodynamically designed to ensure minimum airflow turbulence.
• Tempered-glass side walls for good observation and easy cleaning.

Technical specifications:

• Working area dimensions (WxDxH)mm: 1120 x 550 x 600
• External dimensions (WxDxH)mm: 1200 x 720 x 1200
• Main cabinet body: Epoxy-coated rolled steel
• Windows on 2 sides: safety glass
• Front operation door: made of safety glass, hand-sliding
• Control panel: on/off switch with soft keys
• Power: 800W
• Power supply: 220/240 V - 50 Hz and 220 V - 60 Hz
• Noise level: < 60 dB(A)
• Light source: >800
• Work surface (optional): AISI 304 Stainless steel or polypropylene
• Number of main carbon filters (12 kg): 2 sets

Optional: Number of safety exhaust filters (4 kg): 2 sets

• Number of inlet filter membranes (Prefilter): 2 sets
• Weight (not including filter): 130 KG
• Treated air flow rate (m3/h): 550
• Average front front barrier speed m/s: > 0.4 (set point 0.50 m/s)
