1. Principle of the Compact Dry medium plate
Compact Dry is a ready-made medium plate, pre-poured with freeze-dried agar, used for rapid bacteria testing in food. The Compact Dry medium plate, 50mm in diameter, uses a microorganism detection mechanism based on the reaction of enzymes produced by microorganisms during culture with specific substrates to produce colonies with characteristic colors.
2. Why choose the ready-made microbiological medium plates of Shimadzu (Nissui)
- The Compact Dry plate is a plastic plate containing freeze-dried ready-made microbiological medium, pre-prepared with the same medium composition as traditional ISO methods, with improvements.

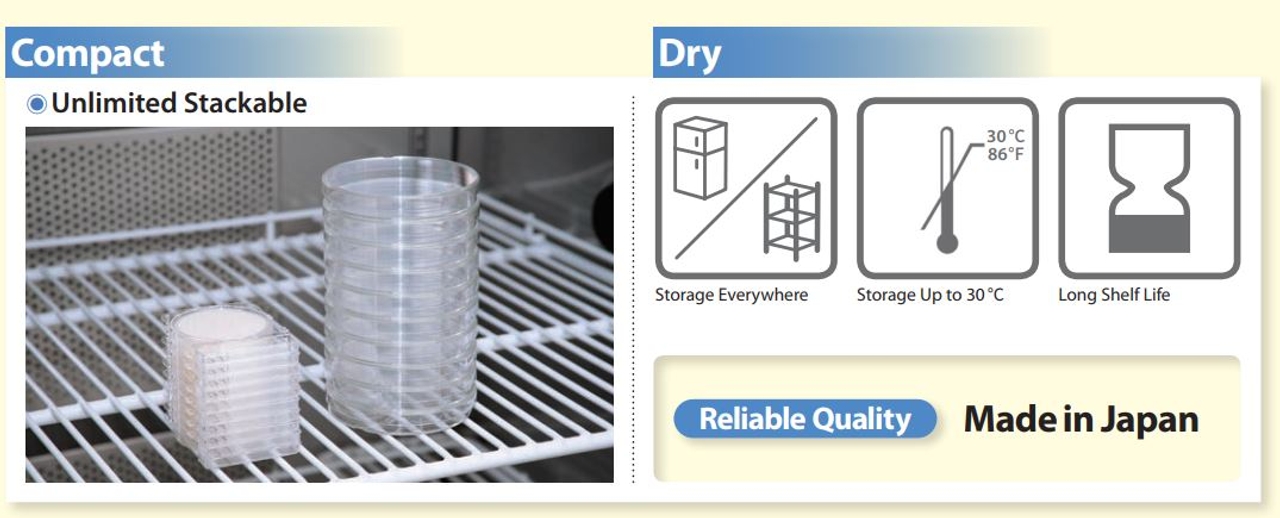

- With a small, compact design that saves incubator space; simple operation with no time spent on medium preparation -> improves labor productivity.
- Compact dry plates help reduce microbiological medium preparation time.
- Compact design, convenient for saving incubator space and easy to operate.
- Plates are stored at room temperature.
- Low cost and accurate results according to international standards: Iso 9001:2008, AOAC, MicroVal, NordVal.
- Suitable for many sample matrices: solid samples: meat, shrimp , fish, animal feed, milk, milk powder , liquid milk,... Liquid samples: domestic water, wastewater… by the direct method and the membrane filtration method
- Compact Dry medium plates manufactured by Shimadzu Nissui – Japan comply with the standard ISO 9001:2008; and most plate types have been certified by international organizations such as AOAC, MicroVal, NordVal, and especially the Ecoli Coliform indicator and the yeast and mold plate have been certified by Vietnamese standards.
- Nissui Compact Dry ready-made microbiological medium plates cover many types of bacteria: Ecoli Coliform, Total aerobic bacteria, Staphylococcus aureus, gut bacteria (Enterobacteriaceae)v Mold and mold, Listeria, Salmonella, Vibrio parahaemolyticus bacteria, bacillus cereus bacteria, Pseudomonas aeruginosa bacteria.
3. Detailed information on the Compact Dry medium plate indicators
3.1. Compact Dry TC Plate Total Viable Count
- Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed), milk (milk powder, liquid milk), water (direct or membrane filtration).
- Certifications obtained: AOAC RI, MicroVal, NordVal.
- Incubation time: 48±3 hours.
- Incubation temperature: 35±2℃.
- Colony appearance: colonies turn red.
- Packaging specification: 4 plates/pack or 1,400 plates/carton.
3.2. Compact Dry EC Plate Ecoli Coliform
- Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed), milk (milk powder, liquid milk), water (direct or membrane filtration).
- Certifications obtained: AOAC RI, MicroVal, NordVal.
- Incubation time: 24±2 hours.
- Incubation temperature: 35±2℃.
– Colony appearance:
+ E.coli: blue/blue-violet colonies.
+ Coliform: all red and blue colonies.
- Packaging specification: 4 plates/pack or 1,400 plates/carton.
3.3. Compact Dry ETB Plate Enterobacteriaceae
– Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed), milk (milk powder, liquid milk), water (direct or membrane filtration).
– Certifications obtained: MicroVal, NordVal.
– Incubation time: 24±2 hours.
– Incubation temperature: 37±1℃.
– Colony appearance: red/purple colonies.
3.4. Compact Dry SL Plate Salmonella
– Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed), milk (milk powder, liquid milk), water (direct or membrane filtration).
– Certifications obtained: AOAC RI certification under submission.
– Incubation time: 20 -24 hours.
– Incubation temperature: 35 – 37℃.
– Colony appearance: dark blue.
– Packaging specification: 4 plates/pack or 1,400 plates/carton.
3.5. Compact Dry VP Plate Vibrio parahaemolyticus
– Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed), milk (milk powder, liquid milk), water (direct or membrane filtration).
– Certifications obtained: AOAC RI certification under submission.
– Incubation time: 18-20 hours.
– Incubation temperature: 35℃ ±2℃.
– Colony appearance: light blue/blue.
– Packaging specification: 4 plates/pack or 1,400 plates/carton.
3.6. Compact Dry CF Plate Coliform
– Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed), milk (milk powder, liquid milk), water (direct or membrane filtration).
– Certifications obtained: AOAC RI certification under submission.
– Incubation time: 24 hours.
– Incubation temperature: 35℃ ±2℃.
– Colony appearance: light blue/blue.
– Packaging specification: 4 plates/pack or 1,400 plates/carton.

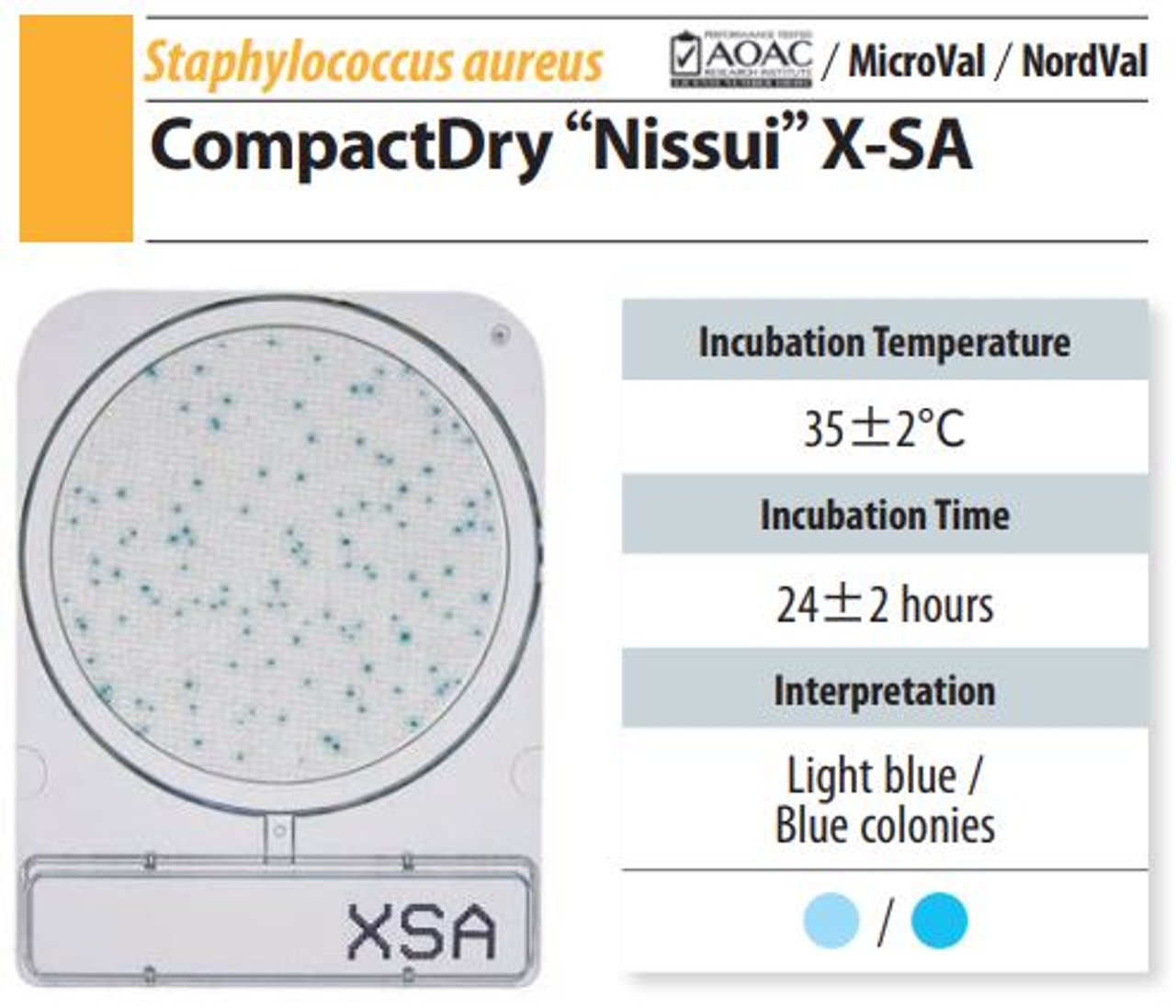

3.7. Compact Dry X-SA Plate Staphylococcus aureus
– Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed), milk (milk powder, liquid milk), water (direct or membrane filtration).
– Certifications obtained: AOAC RI, MicroVal, NordVal.
– Incubation time: 24±2 hours.
– Incubation temperature: 35±2℃.
– Colony appearance: light blue/blue colonies.
– Packaging specification: 4 plates/pack or 1,400 plates/carton.
3.8. Compact Dry BC Plate Bacillus cereus
– Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed), milk (milk powder, liquid milk), water (direct or membrane filtration).
– Certifications obtained: AOAC, MicroVal, NordVal.
– Incubation time: 24 hours.
– Incubation temperature: 30℃.
– Colony appearance: green/blue.
– Packaging specification: 4 plates/pack or 1,400 plates/carton.

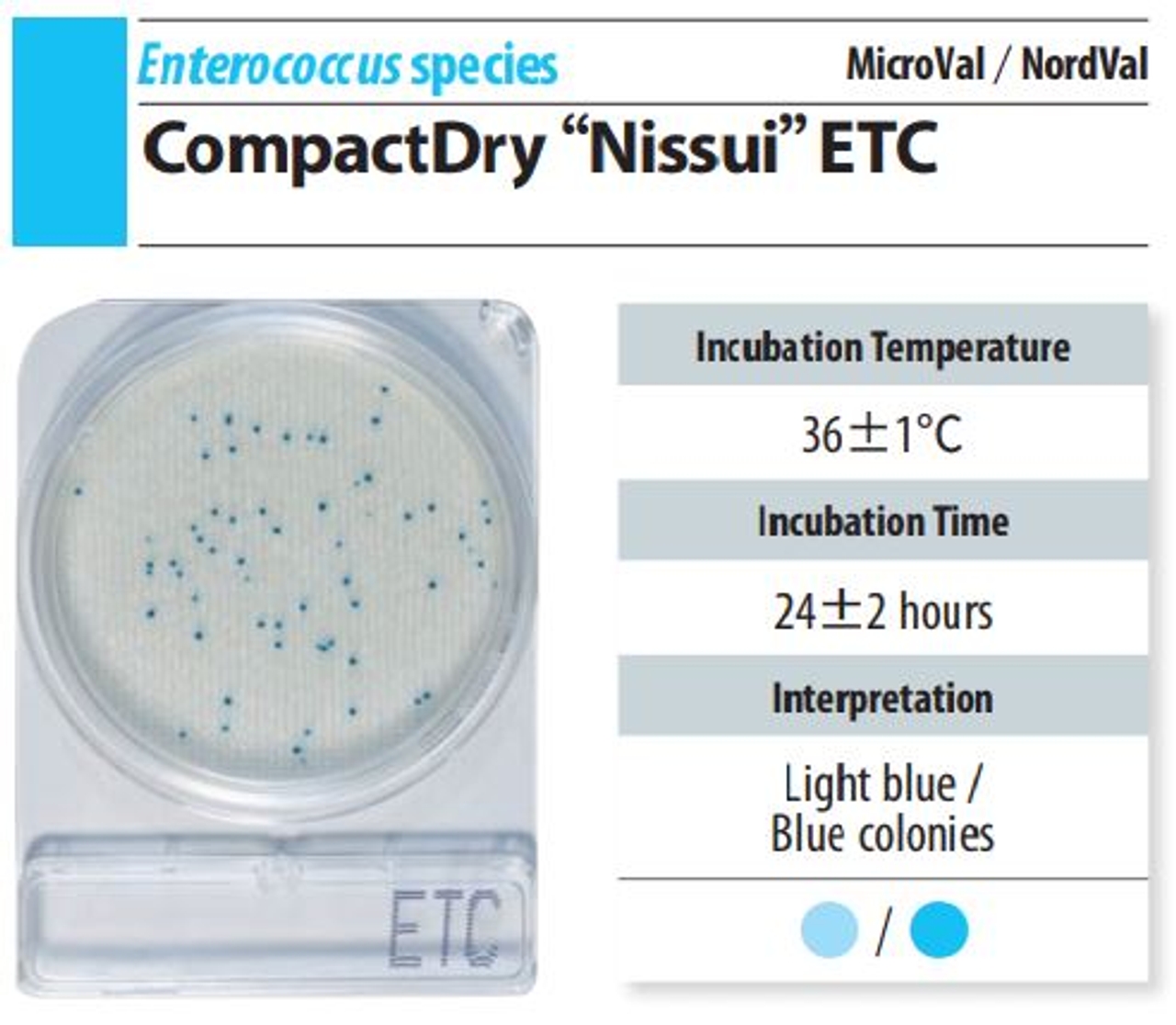

3.9. Compact Dry ETC Plate Enterococus Species
– Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed), milk (milk powder, liquid milk), water (direct or membrane filtration).
– Certifications obtained: MicroVal, NordVal.
– Incubation time: 24 hours.
– Incubation temperature: 36℃.
– Colony appearance: blue and light blue.
– Packaging specification: 4 plates/pack or 1,400 plates/carton.
3.10. Compact Dry YMR Plate Yeast and Mold Rapid
– Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed); milk (milk powder, liquid milk), water (direct or membrane filtration).
– Certifications obtained: AOAC RI, MicroVal, NordVal.
– Incubation time: 3-7 days (standard plates)/ 48-72 hours (rapid YM plates).
– Incubation temperature: 25±2℃.
– Colony appearance:
+ Yeast : Blue or white to cream colonies (Blue, white, cream-white colonies).
+ Mold : Cottony colonies with mold colors (Colonies with mycelium in the characteristic color of each mold type)
– Packaging specification: 4 plates/pack or 1,400 plates/carton.
3.10. Compact Dry LS Plate Listeria species
– Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed); milk (milk powder, liquid milk), water (direct or membrane filtration).
– Certifications obtained: AOAC RI certification under submission.
– Incubation time: 24 hours.
– Incubation temperature: 35 or 37℃ ±1℃.
– Colony appearance: light blue/blue.
– Packaging specification: 4 plates/pack or 1,400 plates/carton.

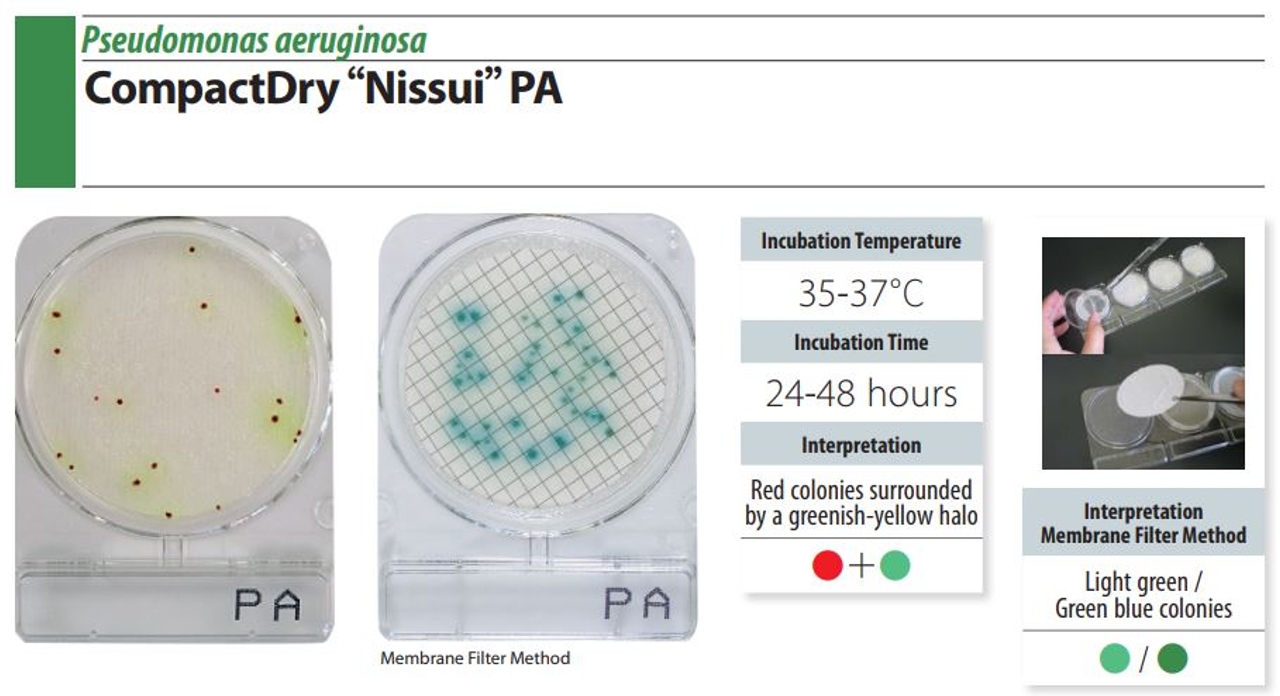

3.11. Compact Dry PA Plate Pseudomonas aeruginosa
– Applicable to sample matrices: water (direct or membrane filtration).
– Certifications obtained: certification under submission.
– Incubation time: 24 to 48 hours.
– Incubation temperature: 35 or 37℃ ±1℃.
– Colony appearance: count red colonies with a yellow/green halo or green colonies.
– Packaging specification: 4 plates/pack or 1,400 plates/carton.
3.12. Compact Dry LM Plate Listeria monocytogenes
– Applicable to sample matrices: solid (meat, shrimp and fish, eggs, animal feed); milk (milk powder, liquid milk), water (direct or membrane filtration).
– Certifications obtained: MicroVal certification.
– Incubation time: 25±1 hours.
– Incubation temperature: 37℃ ±1℃.
– Colony appearance: count red colonies with or without a blue halo around them to presumptively identify L. monocytogenes presumptively. If presumptive L. monocytogenes presumptively, perform confirmatory tests according to ISO11290-2: 2017.
– Packaging specification: 4 plates/pack or 1,400 plates/carton.
PacificLAB is proud to be the exclusive distributor of the Food & Feed compact dry plate products of Shimadzu Nissui in Vietnam. Please refer to the manufacturer's products at:
